Technical Table of Steel columns radiators (6 Columns)

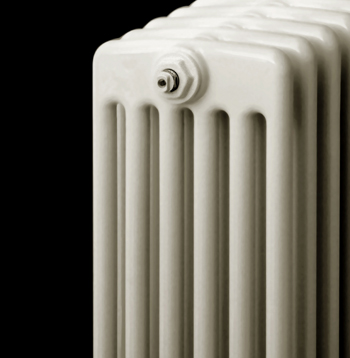

6 COLUMNS RADIATOR BY ZENITH

6 COLUMNS RADIATOR BY ZENITH
click on the image to enlarge it

CHARACTERISTIC EQUATION
Ф = Km Δtn

Φ is the output in watt calculated for element according to the Characteristic equation above described.
To obtain the heat outputs in Kcal/h it is sufficient to multiply the same value for 0.860 (1Watt = 0.860 Kcal/h)

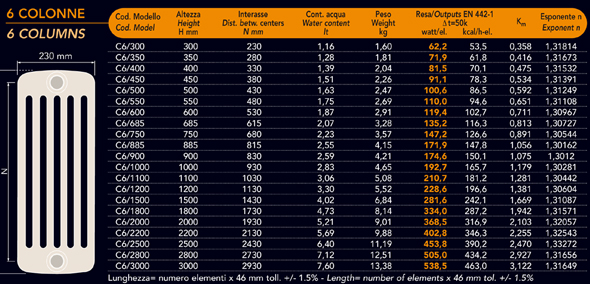

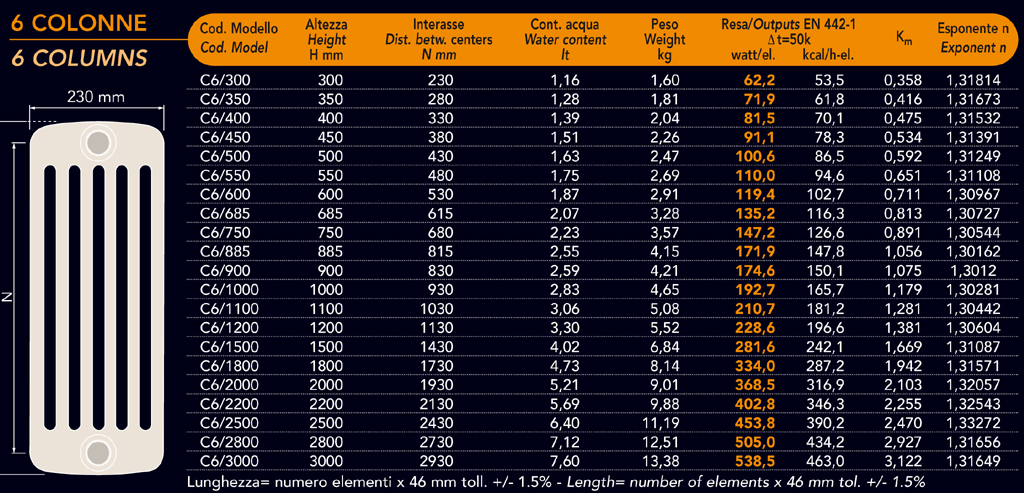

Heat outputs in the table are calculated for each single element of all models and heights available for Δt=50°C . It is possible to calculate the desired values for each desired working condition(Δt≠50°C) using the Characteristic equation above described or using the following formula:

W(Δt working)= W(Δt standard)*[( Δt working)/( Δt standard)]n

Con Δt standard (75+65)/2-20=50°C; Δt working = (t entrance + t exit)/2-toutside

where n e Km are described in the tables .

For more information on maximum dimension of batteries joinable with nipples or for whatever technical information, please contact our technical office.
Length of each element is 46 mm +/-1.5%.
